About this item

• Adopting intelligent PIR infrared induction sensor, automatically turned on and off, totally wireless and hands free, no need for remote control or switching.
• High Brightness: each LED puck light outputs 200 lumen, totally giving out 800lm, perfectly fulfills general lighting requirements.
• Safe to Use: Adopting AC110V to DC12V (output) adapter, pretty safe to use and touch by hand.
• Energy Efficient: Each puck light equals to a 25W incandescent bulb, over 90% electric power saved. Induction automatic switching off saves even more energy.

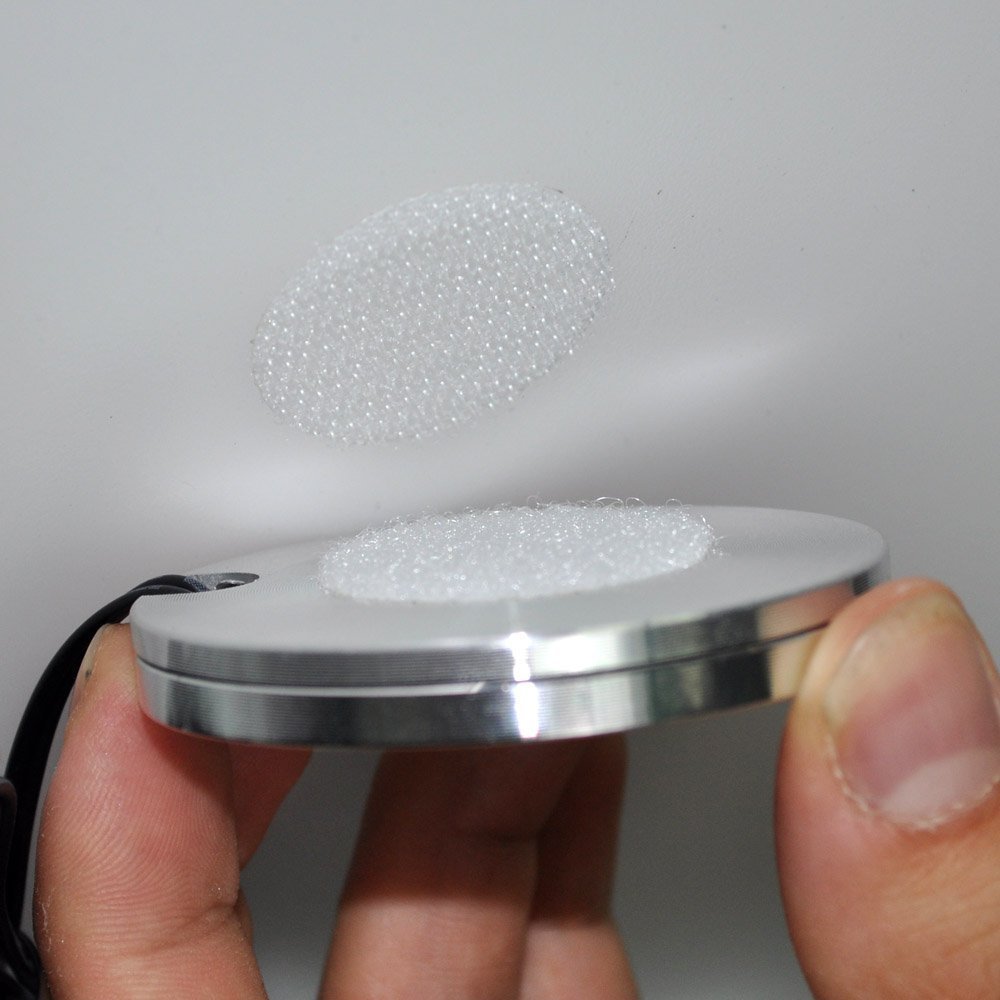

• Versatile: These delicate modern designed under cabinet lights can be installed anywhere as desired: cabinet, closet, shelf, corridor, wine bar etc with some simple 3M adhesive tapes provided.

Product Description

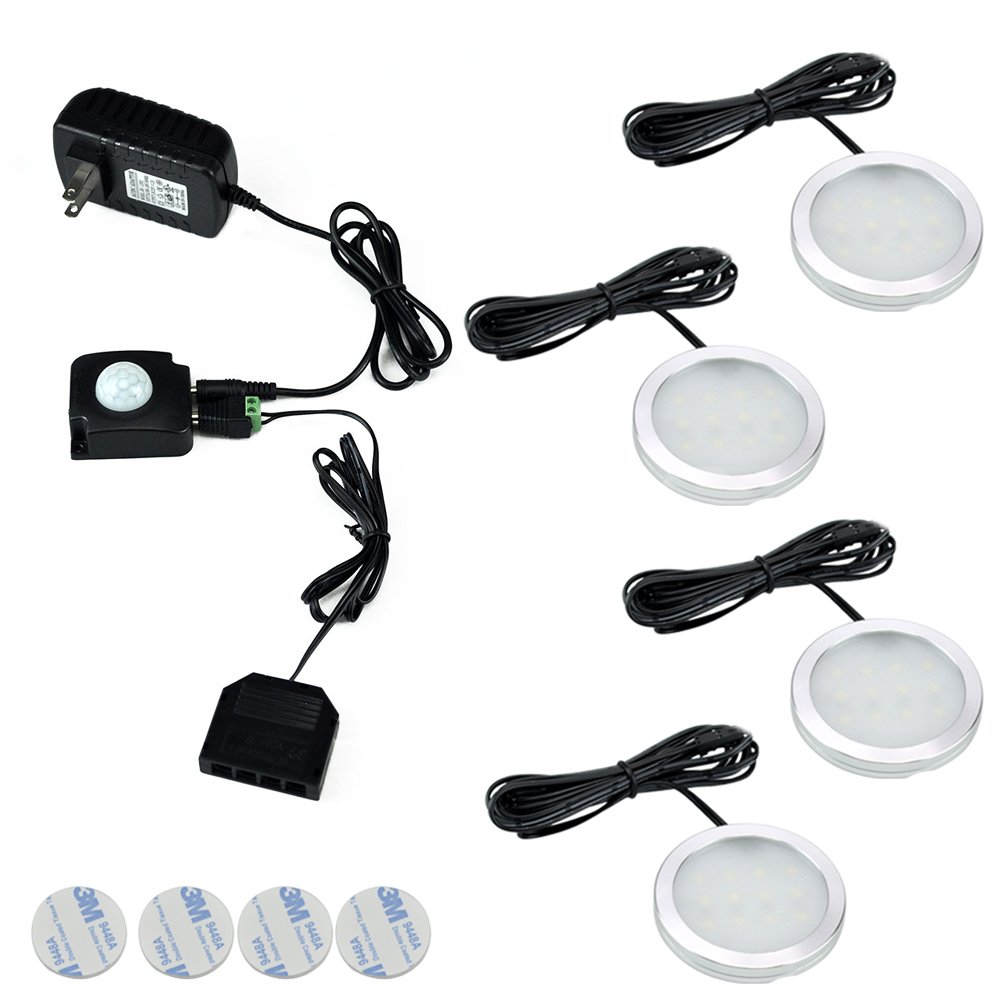

PIR Infrared Induction Sensor LED Under Cabinet Lights Kit Features:

Sensor: PIR Infrared Induction
Induction Distance:10 meter

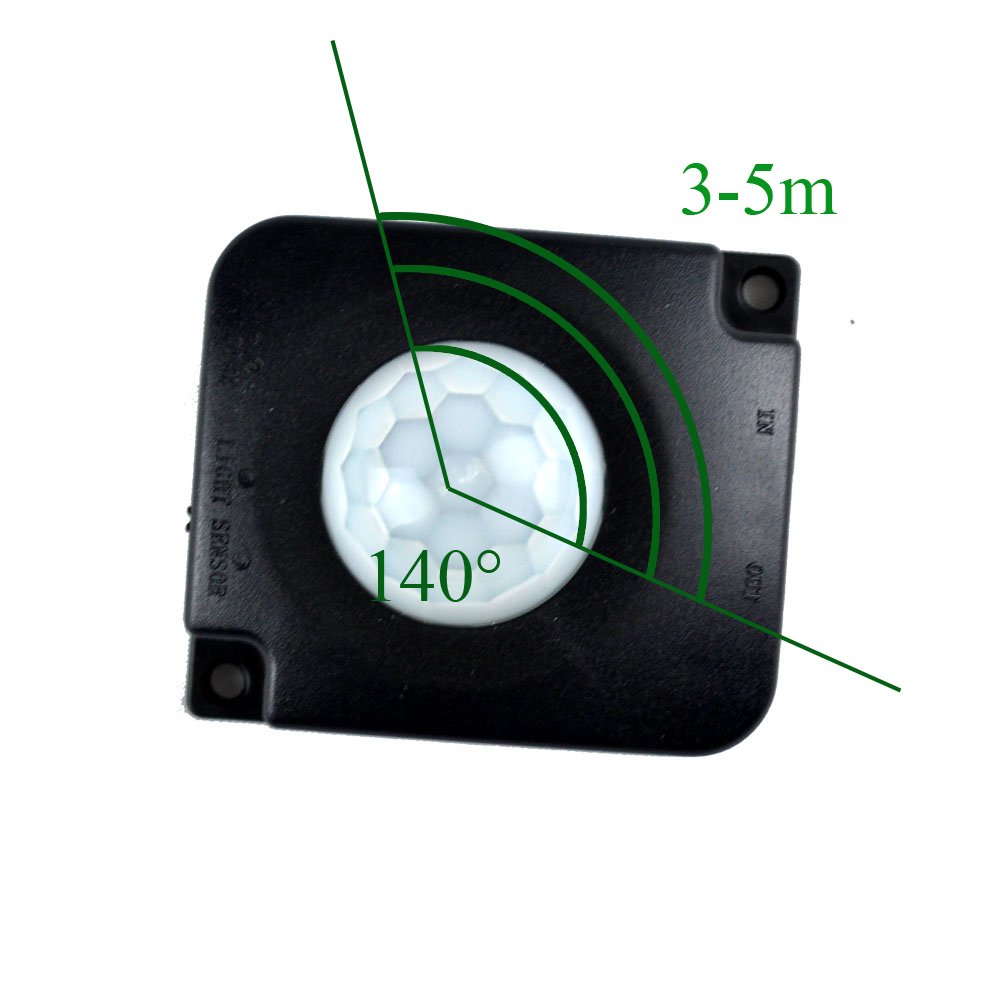

Detecting Angle: 140 degree
Timer: 25 - 120 seconds. The delay time of illuminating can be adjusted according to your requirement.
Operation Voltage: 5-30V
Connection Interface: common DC connector
Size: 49-42.5mm
Color Option: Warm white(2700K-3000K), Day white(5000K-5500K).
Energy-saving: save up to 90% energy saving, replacement of 4 x 25W halogen, incandescent or fluorescent lamps.
Input Voltage: AC110-240V
Operation Voltage: DC12V
Power: 2W per lamp (8W in total)
Lumen Output: 800lm
CRI: >80
Size: D58*H8mm

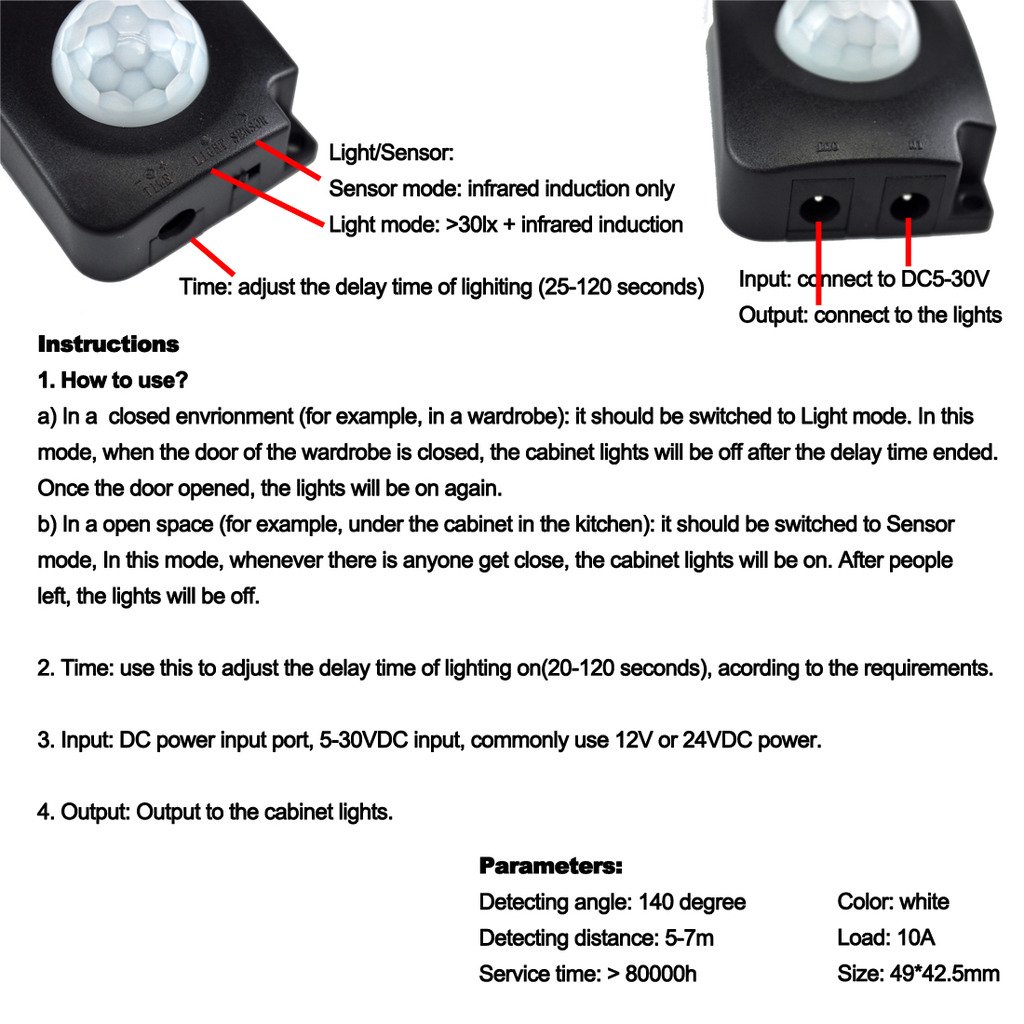

How To Use?

a) In a closed environment (for example, in a wardrobe): it should be switched to Light mode. In this mode, when the door of the wardrobe is closed, the cabinet lights will be off after the delay time ended. Once the door opened, the lights will be on again.

b) In an open space (for example, under the cabinet in the kitchen): it should be switched to Sensor mode, In this mode, whenever there is anyone get close, the cabinet lights will be on. After people left, the lights will be off.

1. Home applications - showcase, wine, jewelry cabinets, stairs corridor hallway, decorative night light application.
2. Commercial Lighting-wall light, hotel room night light, KTV nightclubs and other high places decorative lighting applications.
3. Best solution for indoor furniture, wardrobe light, wine rack light, work-top light, showcase light, exhibition boot light, store shelf light and other inner furniture lighting solutions.
