About this item

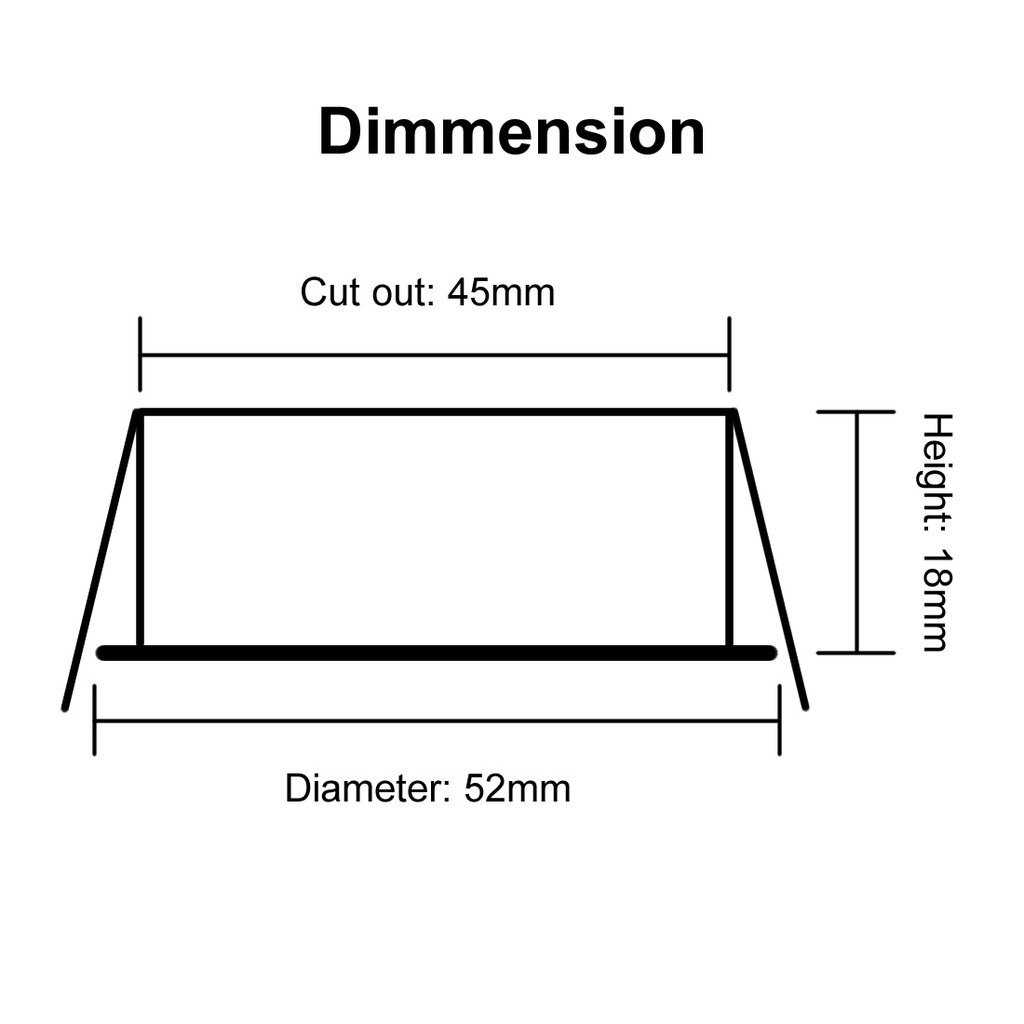

• Recessed installation under cabinet counter lighting, D=52mm, cut out=45mm, H=18mm.
• Beam angle 30 degree, and can be further adjustable, lighting for more space according to different requirements.
• Dimmer with wireless 11-key RF remote control, totally hands free.
• 3,4,6 lamps set for option, extended cables provided on requested, flexible to use
• AC110V US standard adapter provided, output 12VDC, safe for touching

Product Description

Beam angle djustable RF remote control dimmable LED under cabinet lighting kit direct wired.
Beam angle adjustable.
Controlled by RF remote controller (included).
Saving energy and electricity bill.
12V safe operation with dimmer.
Flexible to use. all puck lights can be connected together or used separately.
Ultra-thin kitchen cabinet lighting, also suitable for narrow under cabinet sections.
Recessed mini downlights, easy for installing.

Under-cabinet Lights Product Features:
Color option: Warm white(2700K-3000K), Day white(5000K-5500K).
Energy-saving: save up to 85% energy comparing to traditional lamps like halogen, incandescent and fluorescent lamps.
RF Remote Controller:
Input: 100-240Vac, Output:12V with 1 meter cable. Power source: 3Vdc, CR2025 battery (Please note: battery is not included in the package).
Controller Distance: 10m
Under Cabinet Lamp:
Operation Voltage: DC12V
Power: 2W per lamp
Lumen Output: 100lm per lamp
CRI: >80
Quantity of Lamps: 3, 4, 6 lamps per set

Applications:
Suitable for household and residential application like under counter, wall, ceiling, cabinet, desk, bed, table, bathroom, bedroom, dining room, reading room, etc.

Installation Instruction:

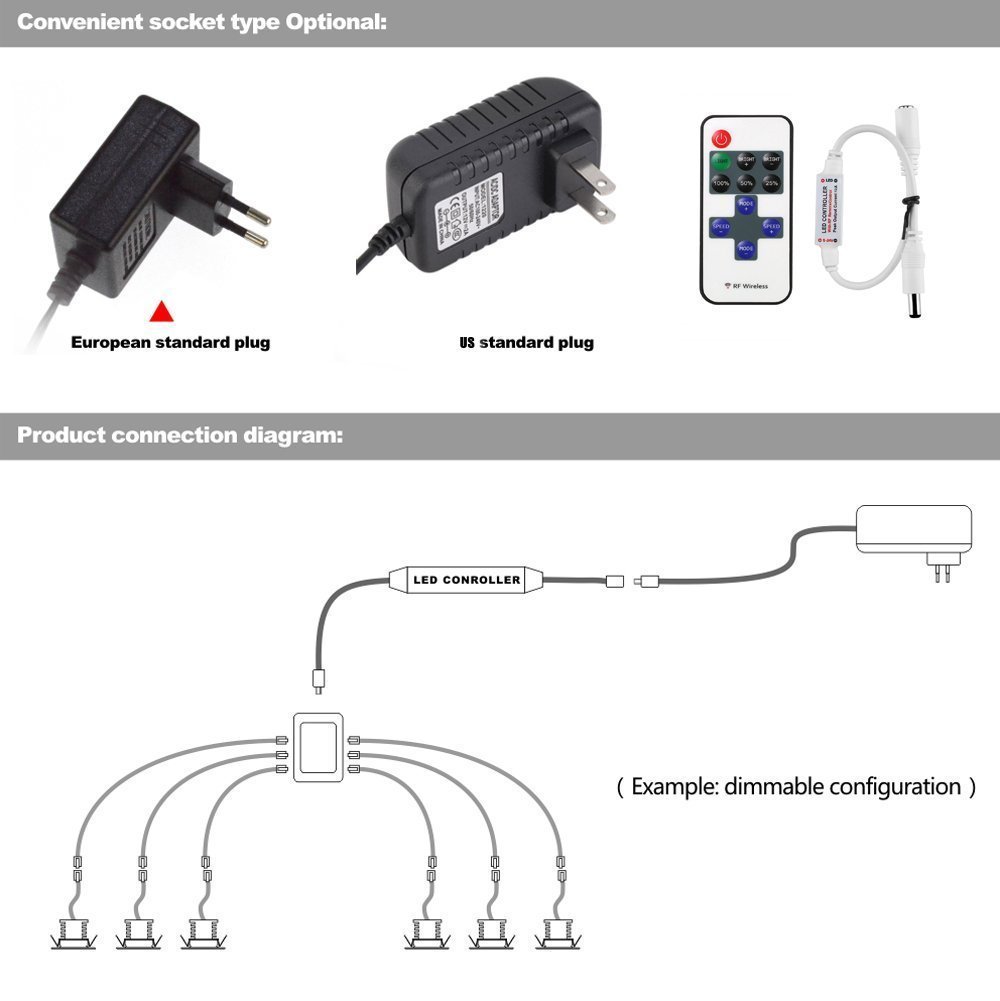

1. Get the LED controller (splitter/distributor box) with the under cabinet lamps connected.
2. Get the power adapter and the LED controller connected.
3. Power on.
4. Use the RF remote control to control the lights

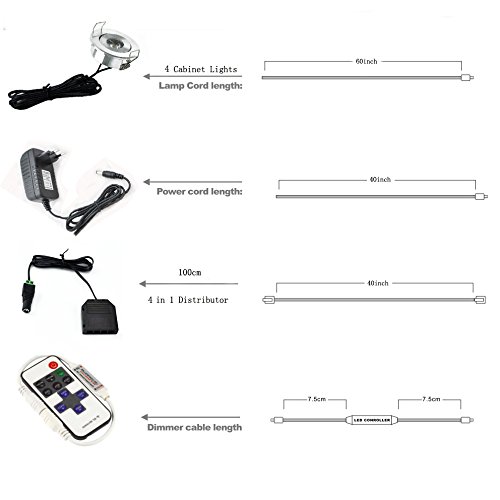

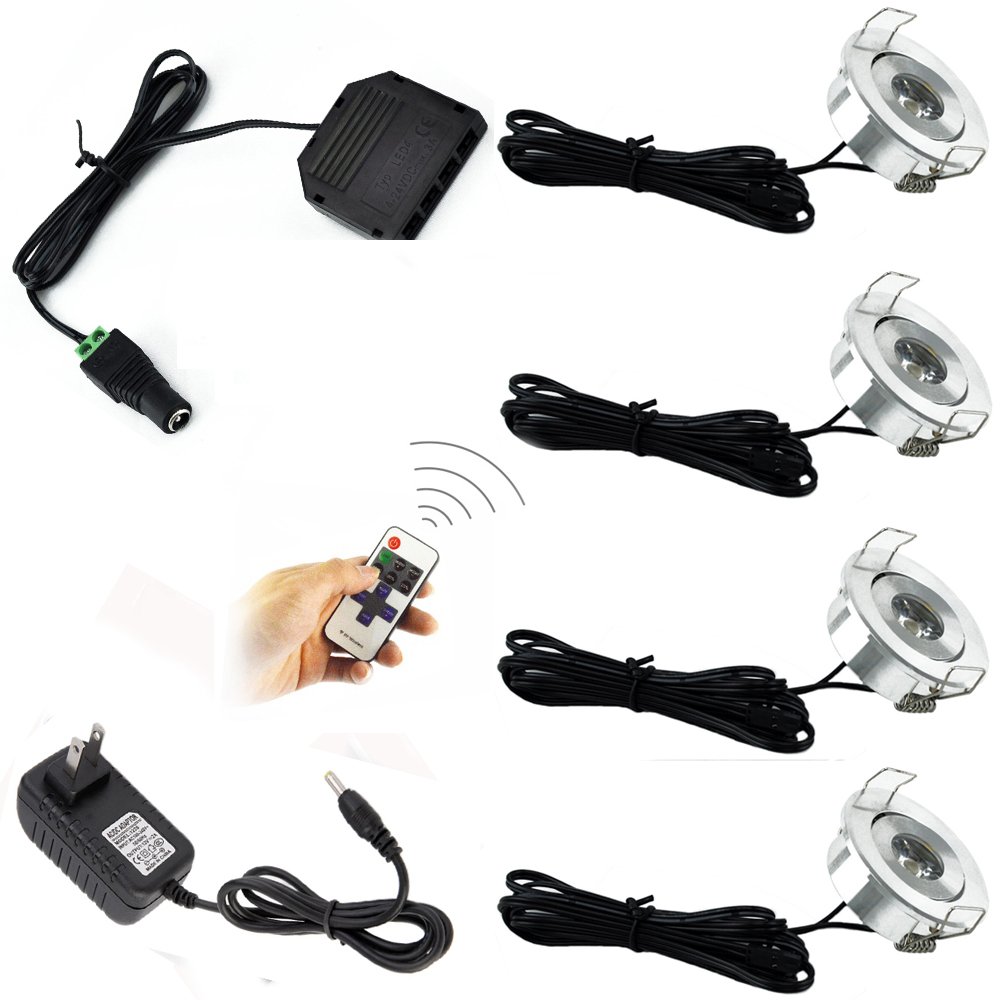

Package Included:
Adapter: (X1)
Controller: (X1), 11-key RF wireless remote controller

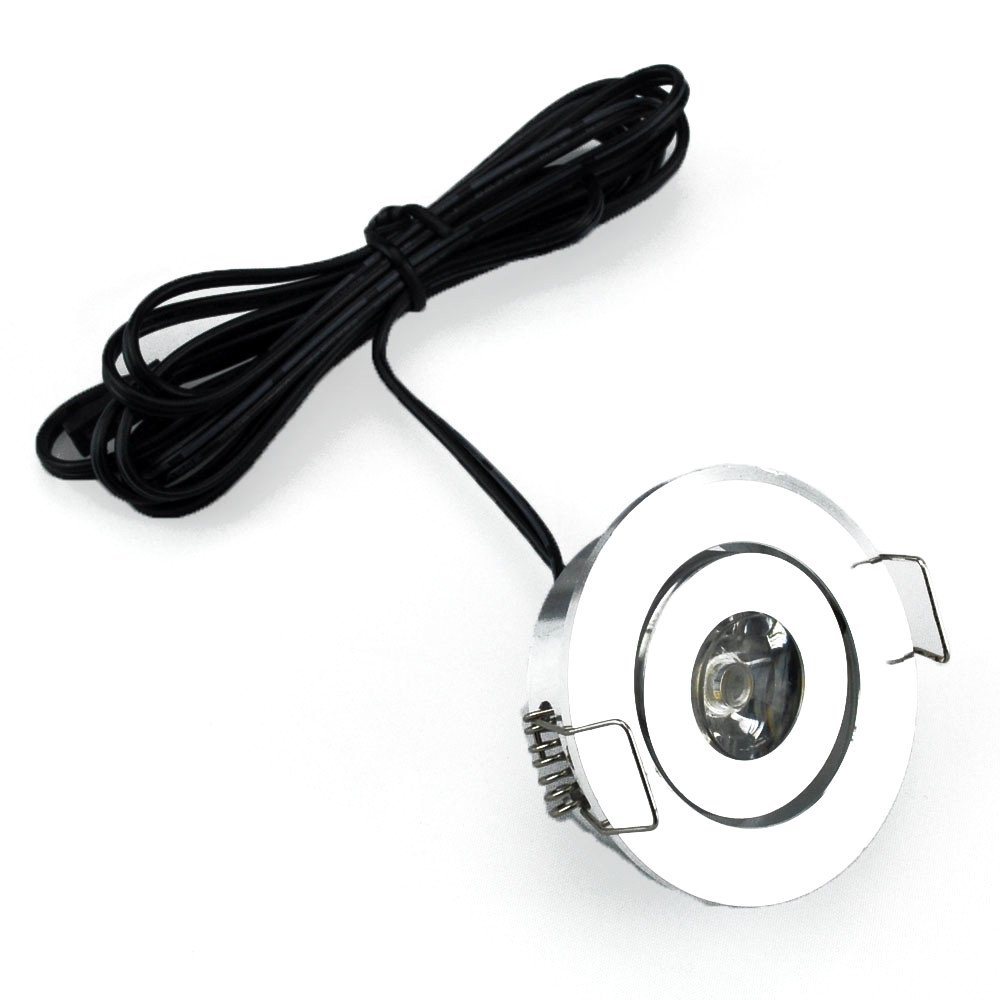

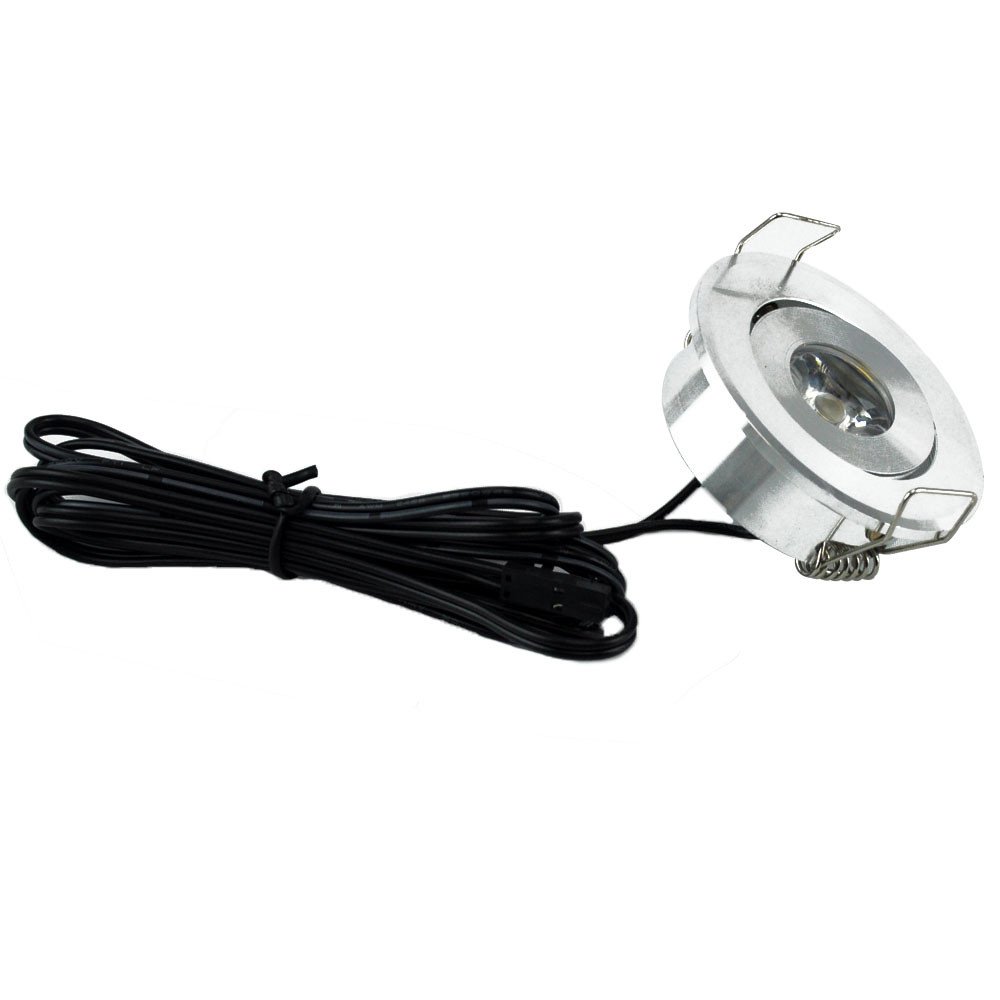

LED Puck Light: (X3,4,6), round shape mini LED downlight puck lights with 1.5m cable
4 in 1 distributor: (X1)
3M adhesive tapes: (X3, 4, 6)

Extension Cable: Should you need any extension cords, please refer to ASIN #B01M9AREIX, #B01M7PHAMR, #B01M9AQK7K, #B01M24DQBU
